Bridge Fills

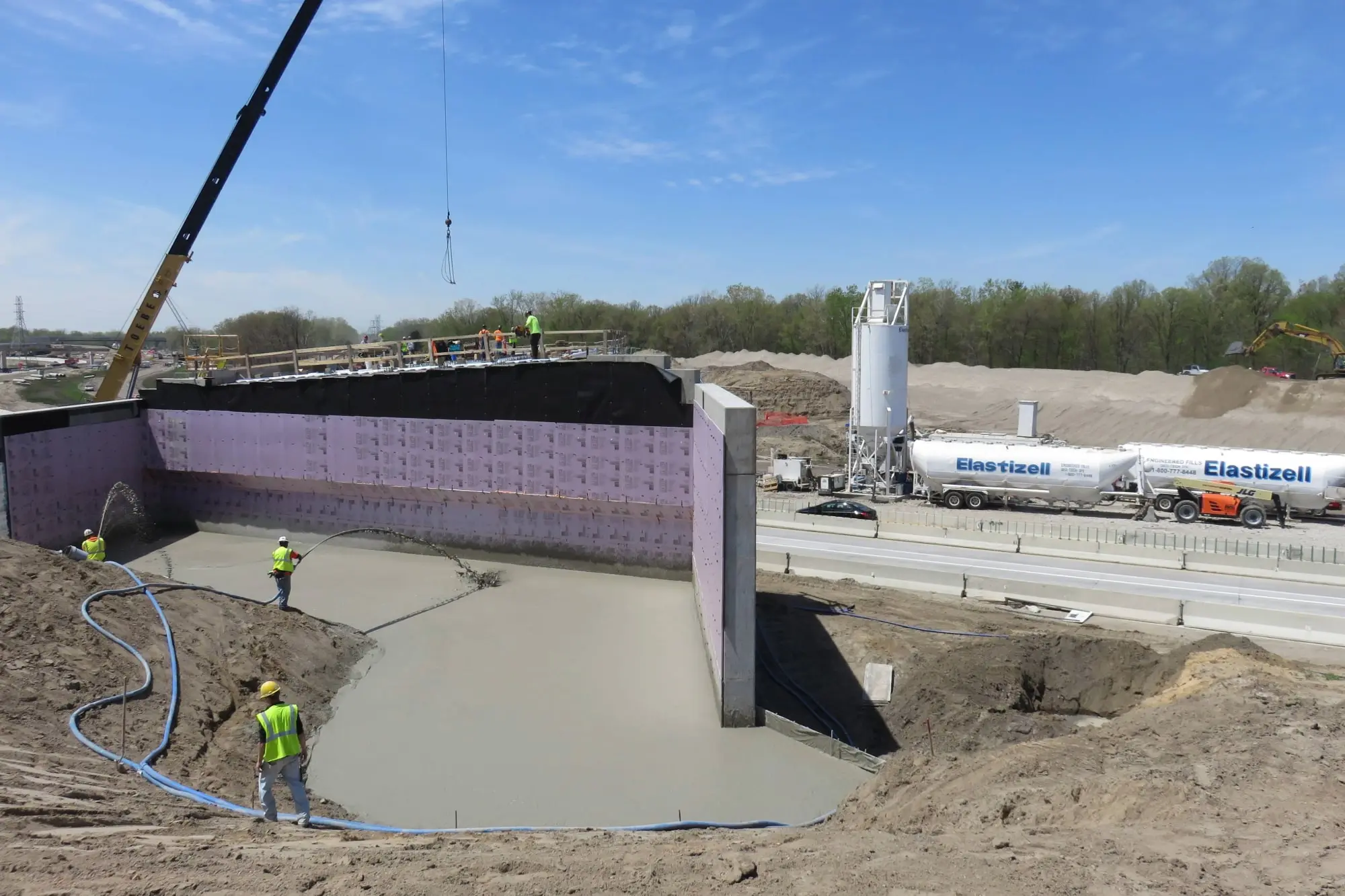

Bridge Fills and Wing Walls with Lightweight Cellular Concrete by Elastizell Systems

Bridge fills and wing walls are critical components in the construction and rehabilitation of bridges, providing essential support, stability, and protection for the structure. Utilizing Lightweight Cellular Concrete (LCC) for both bridge fills and wing walls offers numerous advantages, ensuring that your bridge performs optimally while reducing environmental impact and construction costs.

At Elastizell Systems Inc., we specialize in delivering cutting-edge solutions with Lightweight Cellular Concrete (LCC), making bridge construction more efficient, durable, and sustainable.

Challenges of Poor Soil Quality in Bridge Construction

The soil quality near bridge embankments is often compromised due to the proximity to bodies of water, resulting in weak alluvial soils that create a sub-optimal foundation for bridge approaches and abutment structures. This poor sub-surface foundation is a leading cause of differential settlement—a persistent and costly issue for highway road agencies.

Differential settlement at bridge abutments can have severe consequences:

• Increased Lateral Loads: Minor differential movements can exert additional lateral loads on bridge abutments and wing walls, compromising structural integrity.
• Pavement Depressions: Settlement can lead to pavement depressions at the ends of the bridge, creating hazardous conditions for motorists.
• Damage from Heavy Trucks: Heavy trucks hitting these depressions can cause significant damage to the bridge deck, leading to costly repairs and potential safety hazards.

The Benefits of Using Lightweight Cellular Concrete for Bridge Fills and Wing Walls

Lightweight Cellular Concrete (LCC) is an innovative material that combines the structural strength of traditional concrete with the benefits of a lightweight, high-performance fill material. When used for bridge fills and wing walls, LCC addresses the challenges of poor soil quality and differential settlement, offering several key advantages:

• Mitigation of Differential Settlement: LCC is significantly lighter than traditional fill materials, reducing the load on weak alluvial soils commonly found near bridge embankments. This weight reduction minimizes the risk of differential settlement, ensuring the stability of the bridge structure over time.
• Reduced Load on Foundations: The lightweight nature of LCC reduces the load on bridge foundations and surrounding soil, further mitigating the risks associated with poor soil quality and differential settlement.
• Enhanced Stability and Durability: LCC provides a stable and durable fill that is resistant to environmental factors such as water infiltration, freeze-thaw cycles, and chemical exposure. This enhances the overall durability of the bridge and reduces the need for maintenance.
• Fire Resistance and Safety: Unlike synthetic expanded polystyrene (EPS) lightweight fills, Lightweight Cellular Concrete (LCC) is fire-resistant, non-flammable, and does not support combustion or emit toxic gases. This makes it a safer option, particularly in high-risk environments.
• Resistance to Hydrocarbons: LCC is not susceptible to failure due to exposure to hydrocarbons, unlike EPS fills, which can degrade when in contact with petroleum products. This resistance to chemical damage further enhances the longevity and safety of the structure.
• Improved Performance in Harsh Conditions: Wing walls constructed with LCC are highly resistant to challenges posed by freeze-thaw cycles, water, and chemical exposure, ensuring long-lasting protection for the bridge structure.
• Faster Construction Times: LCC flows easily into place, filling voids and irregular spaces with minimal need for compaction. This ease of placement speeds up construction, allowing projects to be completed more quickly and efficiently.
• Cost-Effective Solution: The reduced weight and ease of installation associated with LCC lower transportation and labor costs. Additionally, the long-term stability and durability of the material reduce the need for costly repairs and maintenance, making it a cost-effective choice for both bridge fills and wing walls.
• Environmental Benefits: LCC is an eco-friendly material that uses less cement and produces lower carbon emissions during manufacturing compared to traditional concrete. Its lightweight nature also reduces the carbon footprint associated with transportation. These factors make LCC a sustainable choice for bridge construction projects.

Applications of Lightweight Cellular Concrete in Bridge Fills and Wing Walls

The use of Lightweight Cellular Concrete (LCC) for bridge fills and wing walls is particularly advantageous in the following scenarios:

• New Bridge Construction: LCC provides the ideal solution for filling the space around new bridge abutments and constructing wing walls that provide stable support and effectively manage earth pressures.
• Bridge Rehabilitation and Widening: When rehabilitating or widening existing bridges, LCC can be used to fill voids, stabilize the structure, and replace or reinforce wing walls, ensuring that the upgraded bridge remains stable and secure.
• Areas with Poor Soil Conditions: In regions where the underlying soil has low bearing capacity or is prone to settlement, LCC can be used to reduce the load on the soil, providing a stable base for the bridge structure and retaining walls.
• Flood-Prone or Coastal Areas: LCC’s resistance to water infiltration and its stability in freeze-thaw cycles make it an excellent choice for bridge fills and wing walls in flood-prone or coastal regions.
• Retaining Structures in Limited Space: LCC is ideal for wing walls in projects where space is limited, allowing for the construction of thinner, yet highly effective retaining structures.

Additional Benefits of Lightweight Cellular Concrete for Bridges

• Improved Load Distribution: LCC helps distribute loads more evenly across the bridge structure. This ensures that stress is not concentrated in any one area, reducing the likelihood of cracks, fractures, or other structural issues over time.
• Enhanced Seismic Performance: Bridges located in seismic zones benefit from LCC's ability to absorb and dissipate energy during an earthquake. Its lightweight nature reduces the inertial forces on the structure, enhancing the bridge’s overall seismic resilience.
• Minimization of Settlement Issues: The reduced weight of LCC significantly lowers the risk of settlement in the bridge approach areas. This is particularly important for long-span bridges or bridges constructed on soft or unstable soils, where traditional fills could lead to significant settlement problems.
• Customizable Density: LCC can be tailored to specific project requirements with adjustable densities. This allows engineers to fine-tune the material’s properties to meet the precise demands of the bridge project, whether it's optimizing for load capacity, thermal insulation, or cost efficiency.
• Integration with Modern Construction Techniques: LCC integrates seamlessly with advanced construction methods such as prefabricated bridge elements or modular construction. Its ease of placement and adaptability make it an ideal material for modern bridge-building techniques that emphasize speed and precision.
• Lower Long-Term Maintenance Costs: The durability and resilience of LCC reduce the frequency and severity of maintenance activities. This leads to lower long-term maintenance costs, as the material resists common issues like water damage, cracking, and erosion that typically require expensive repairs.
• Reduced Impact on Traffic During Installation: The fast-setting nature and ease of placement of LCC allow for quicker installation compared to traditional methods. This minimizes the impact on traffic during bridge construction or rehabilitation projects, reducing road closures and disruptions.
• Thermal Stability: LCC provides excellent thermal stability, reducing the expansion and contraction of bridge elements caused by temperature fluctuations. This helps prevent thermal cracking and extends the life of the bridge, especially in regions with extreme temperature variations.
• Environmental Compatibility: Beyond its low carbon footprint during production, LCC is also less disruptive to the surrounding environment during installation. Its lightweight properties reduce the need for extensive heavy machinery, which can minimize the ecological footprint of bridge construction projects, particularly in sensitive areas.
• Compatibility with Green Building Certifications: Projects using LCC can contribute to green building certifications such as LEED, thanks to its sustainable production process, energy efficiency, and durability. This makes it an attractive choice for bridge projects aiming to meet specific environmental standards.

Why Choose Elastizell Systems for Your Bridge Fills and Wing Walls?

With over 65 years of experience, Elastizell Systems Inc. is at the forefront of applying Lightweight Cellular Concrete (LCC) to bridge projects, ensuring superior performance and longevity. Our solutions are tailored to meet the specific challenges of your project, providing unmatched stability, efficiency, and sustainability.

Contact Elastizell Systems today to learn more about how Lightweight Cellular Concrete can enhance the performance and longevity of your bridge fills and wing walls. Let us provide the innovative solutions you need to ensure your bridge structures are built to last.

Contact Us to get started with the industry leader in Lightweight Cellular Concrete solutions.
